Lider Trailer for manufacture all types of trailer and semi trailer in Turkey .

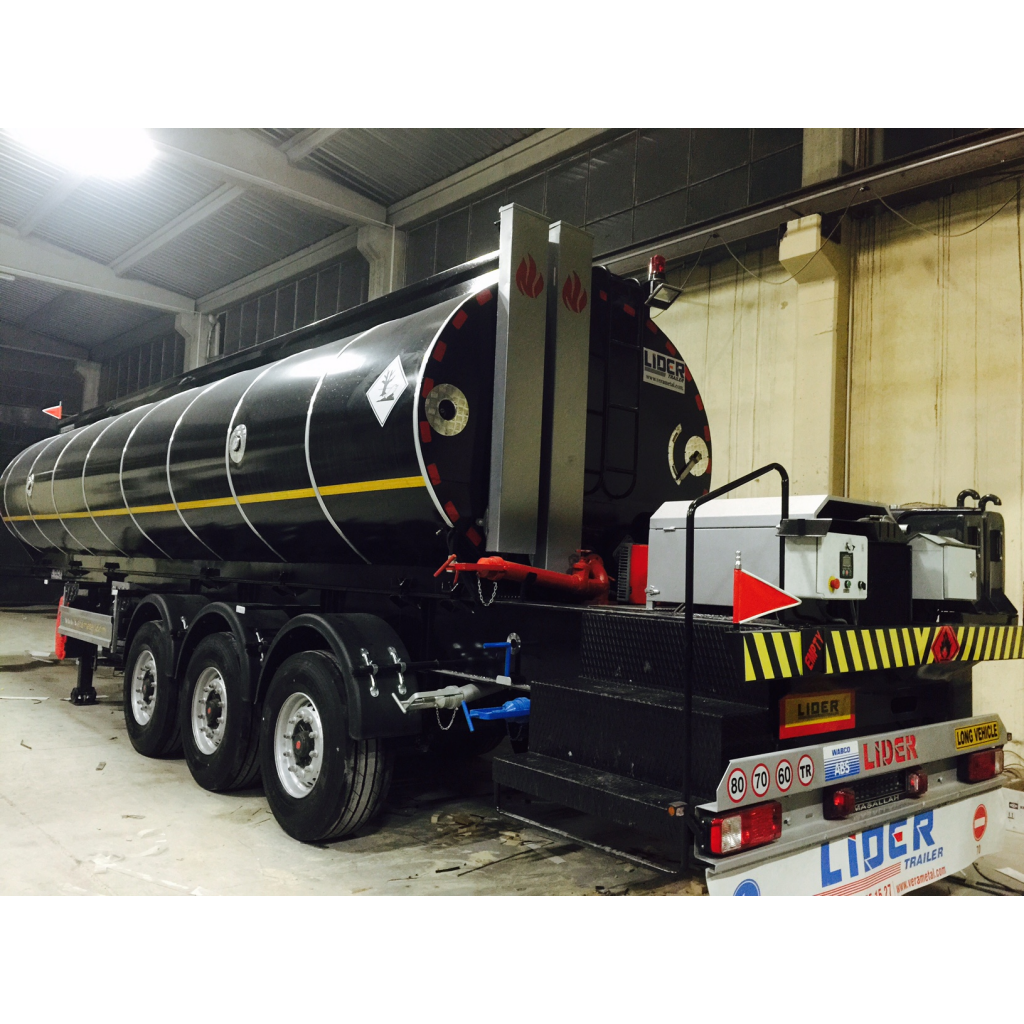

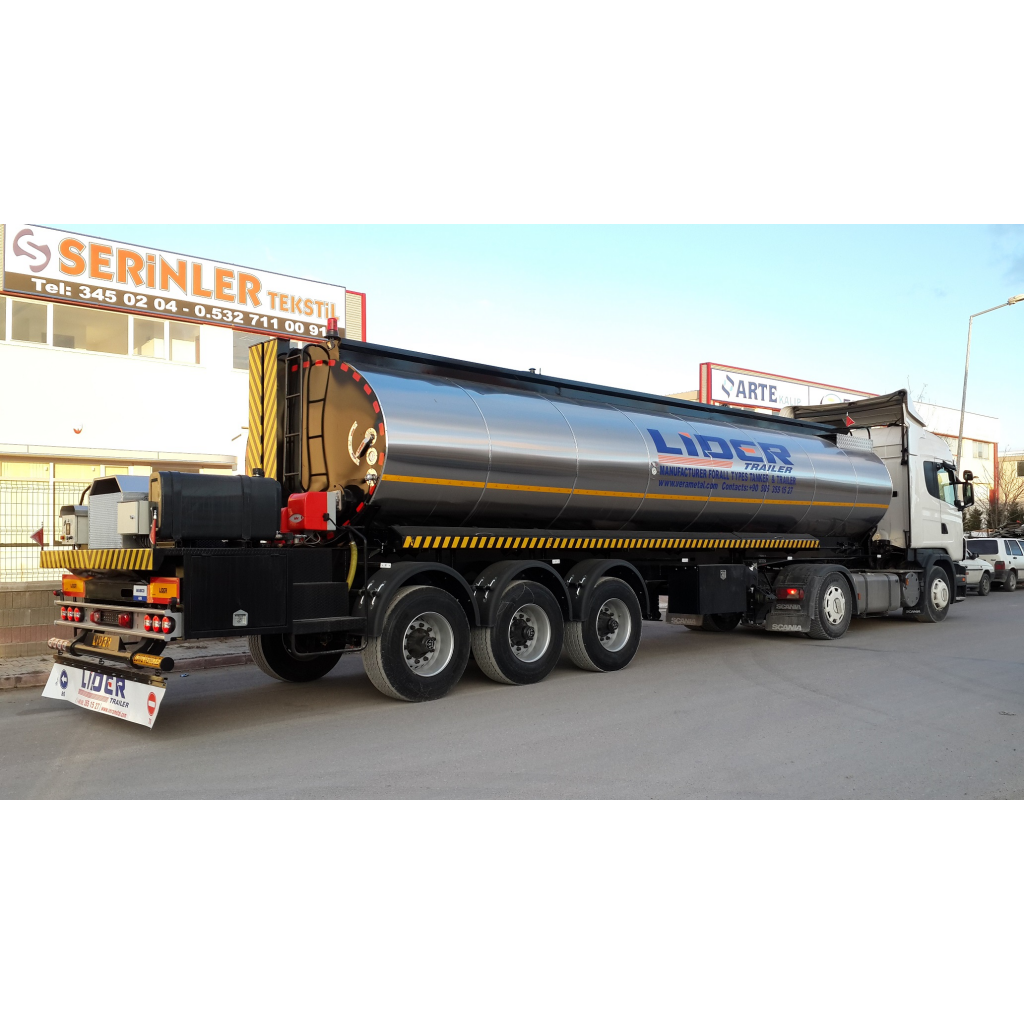

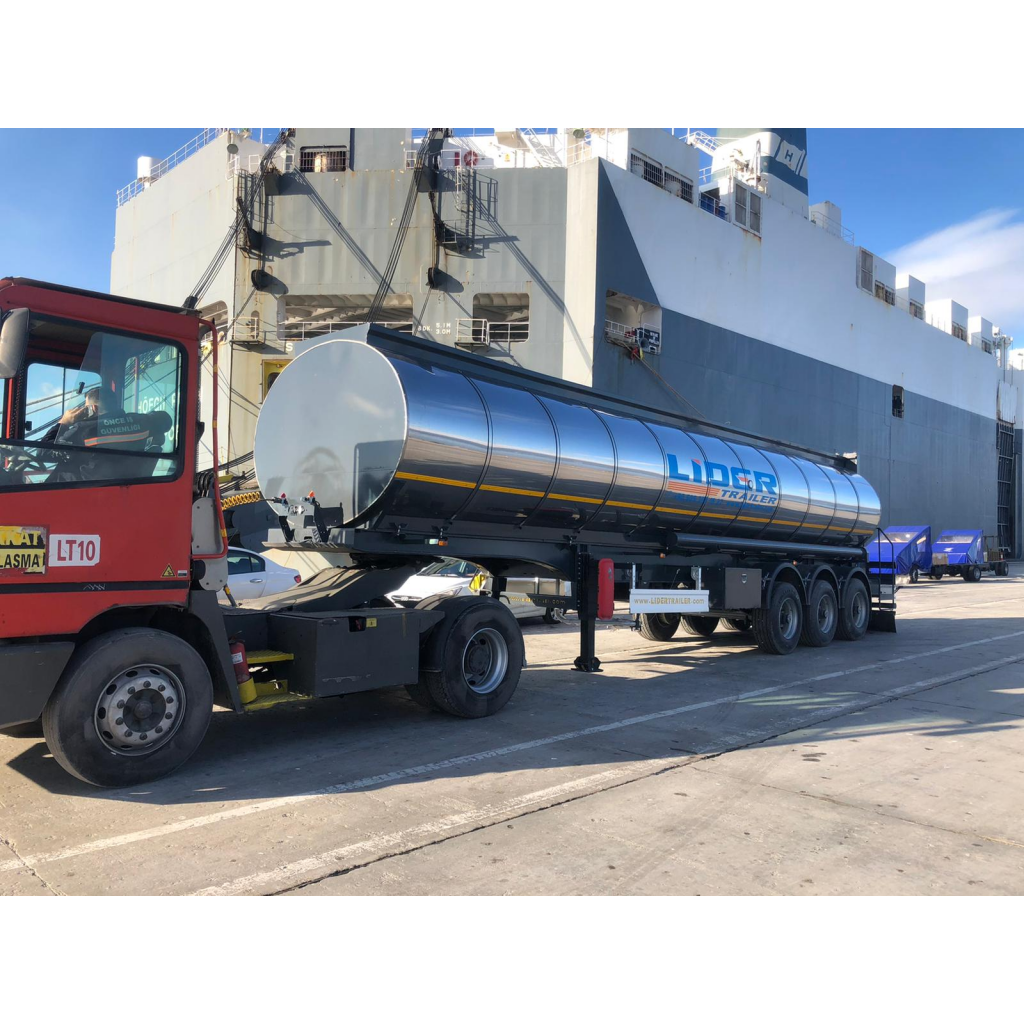

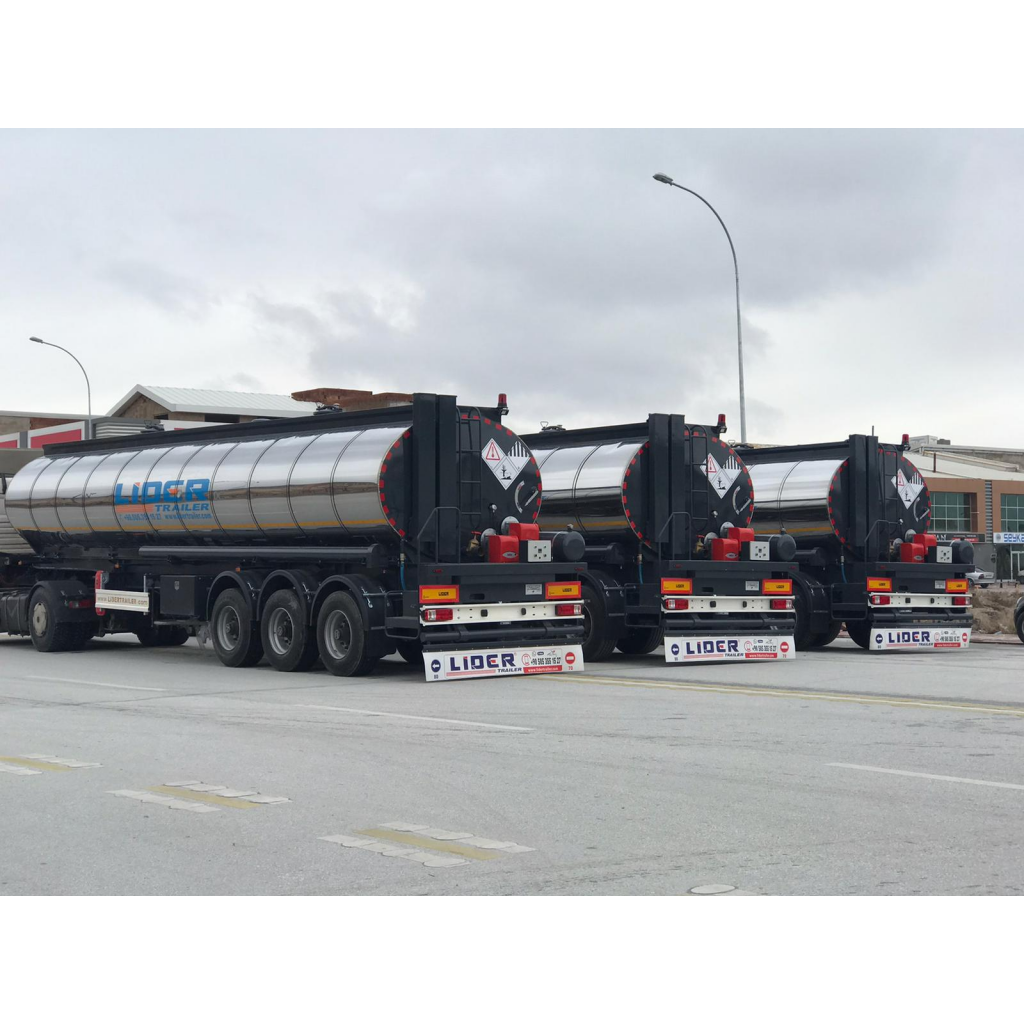

Among our products is Asphalt tanker trailers than used for road constructions .
This Asphalt tankers or Bitumen tankers is used for transportations the hot asphalt and oil .
This Tankers have a 2 heating system with electrice generator .
So you can see the technical specifications about Asphalt tanker trailer in attached .
- Chassis & Body : 200 x 100 8 mm, ST52 box profile, reinforced to light tonnage, 6mm interim traverses and 8 mm play table, 4mm tank reinforcement belts, side iron sheet thickness is 4 mm, sections and wave breakers 4 mm, single chamber, ellipsoid shaped tank.
- King Pin : 2’’ king pin at DIN standards with screw connection.
- Axles : 3 X 14000 kg carriying capacity. “Lider” brand.
- Brake System : Designed according into the european standards Wabco products are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (394x210 mm) axle brakes EBS brake system. There are two pieces of replecable protective brake sockets.
- Air Suspensions Systems : “Lider” Brand air suspension system as EU Standarts..
- Counterfort : They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
- Wheel and Rim : 385/65 R22,5 tyres (6 Units) Goodyear or Pirelli Brand. 11,75 x 22,5 rim (6 Units)
- Paint : Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest
- Electrical equipment : 24 V lightening system, with 7 distributing organization, side lightening system according to traffic and highway standards, lightening sockets, required security plates and warning writings, logo and advertisement writings about the tanker is suitable to tanker refinery standards.
- Tanker : 35 M³ CAPACITY, 1 CHAMBERS. 2 pieces 40 cm manhole cover. Asphalttanker heating system. Cover & Isolation: Cover sheet 1,2 mm galvanized coated, isolation material is 10 cm rock wool Steel thickness: 3,2 mm ST 37 A-1 quality.
- Burner : ALARKO mark or baltur mark, 2 pieces.
- Heating Pipe : Steel pipe, diesel tank.
- Pump : 3” asphalt pump. Pump capacity: 35 cubicmeter/hour
- Motor : Power 28 HP (DIESEL)
- Generator : 2 KW OR 3 KW generator(1 PIECE)
- Temperature Indicator : 4 pieces
