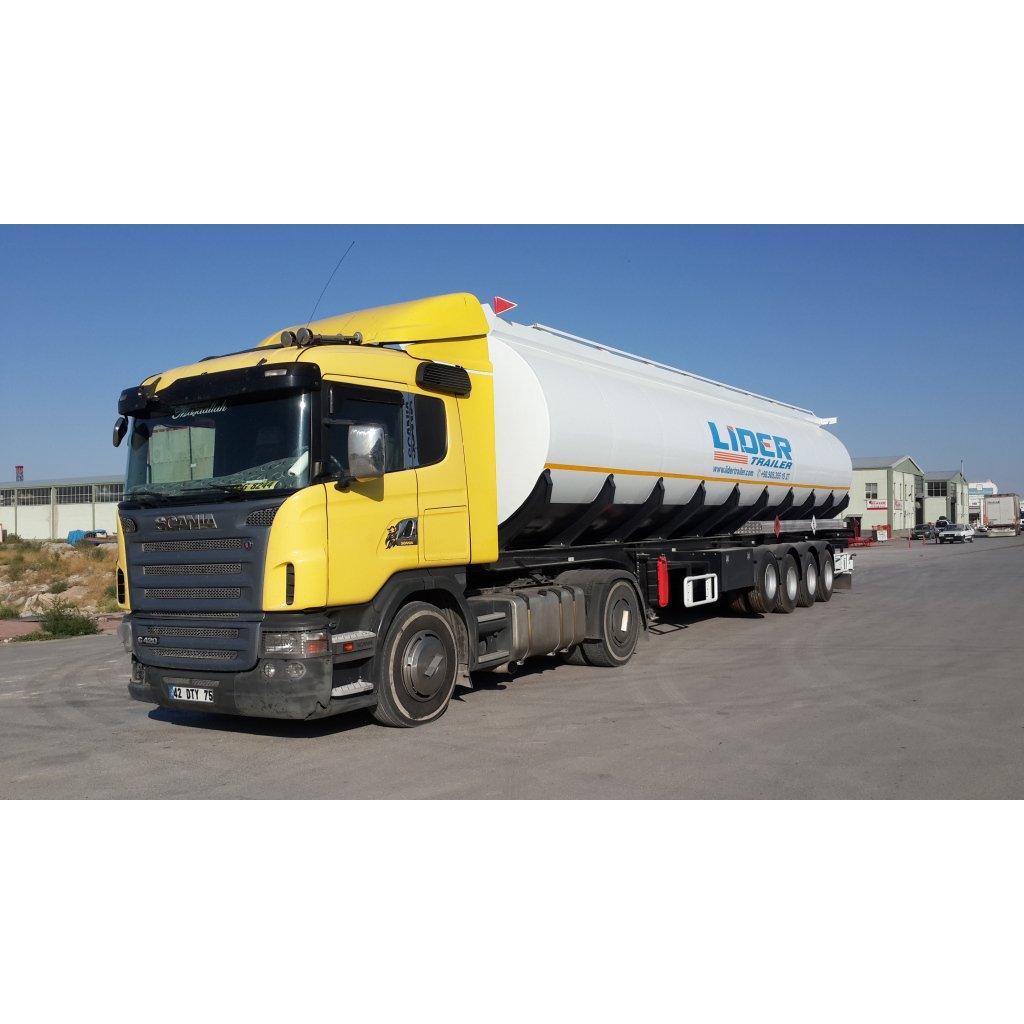

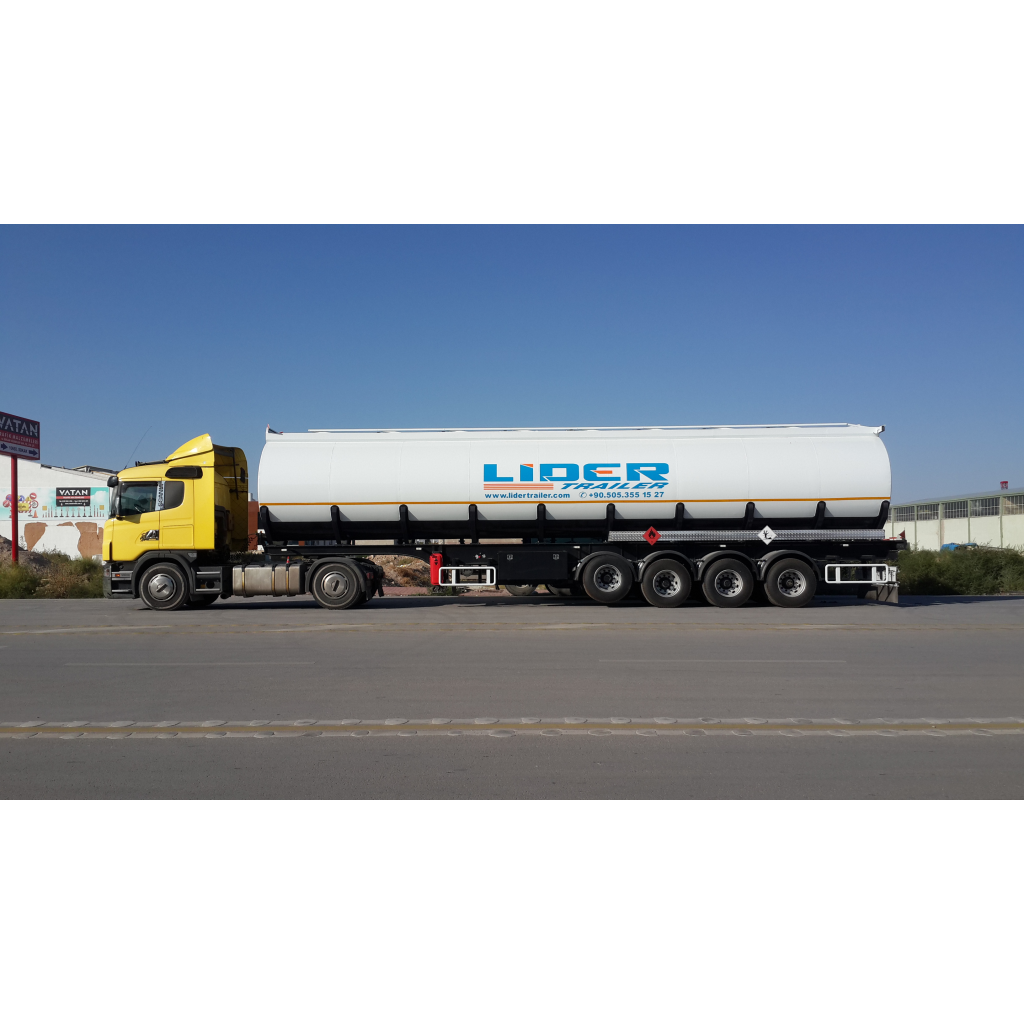

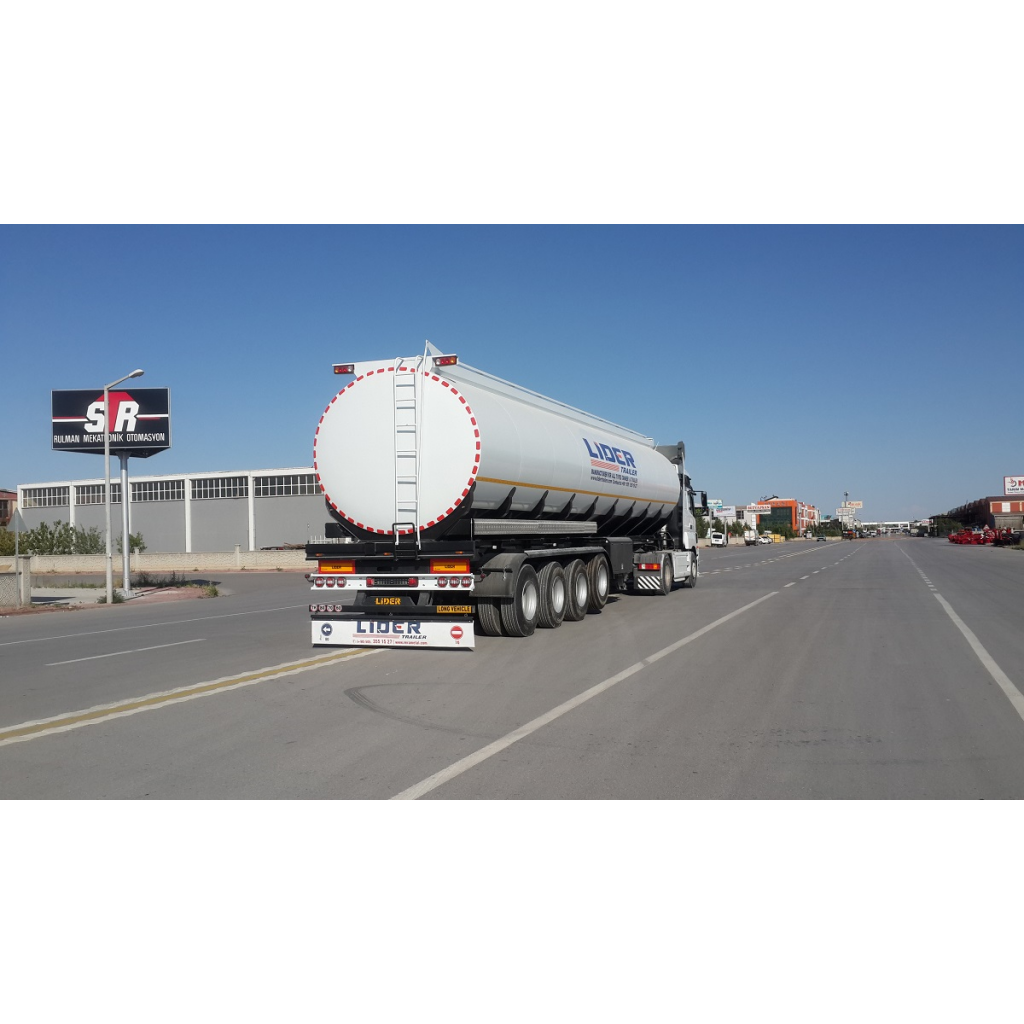

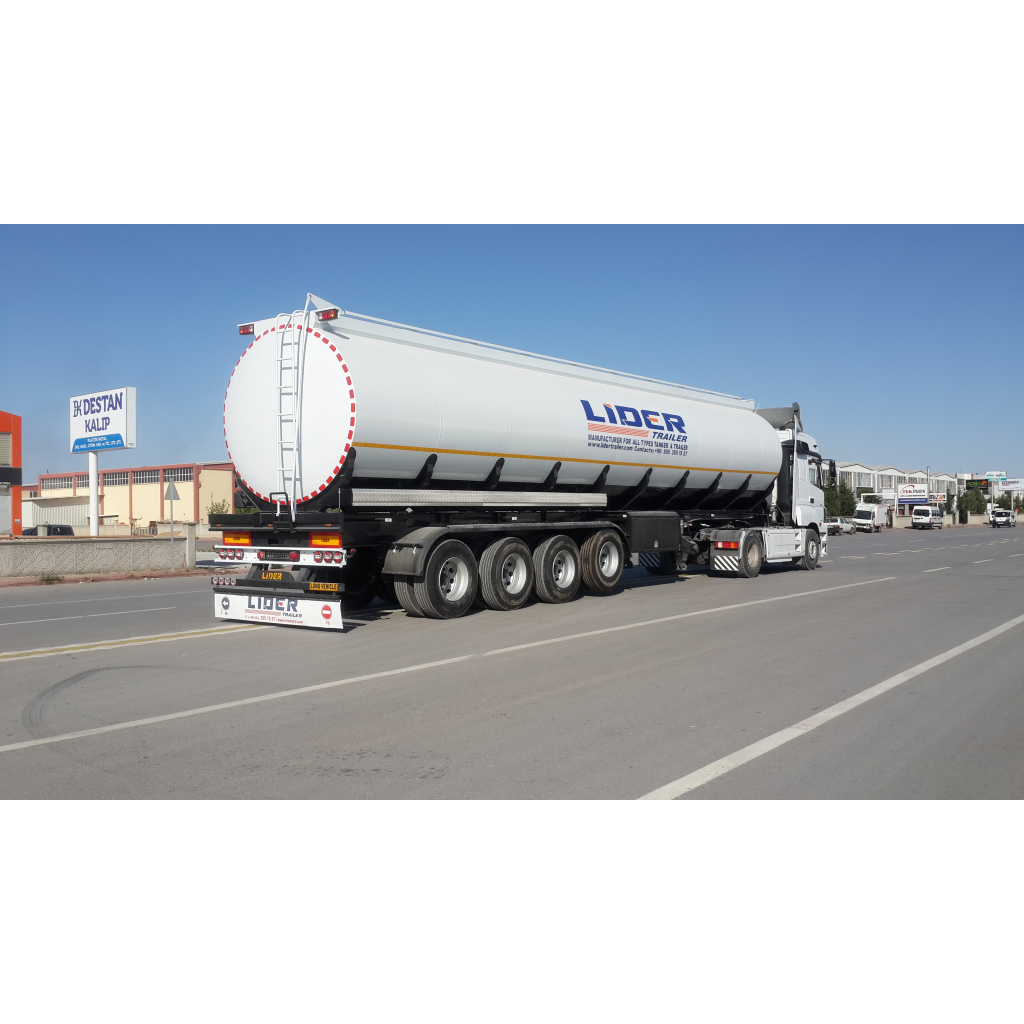

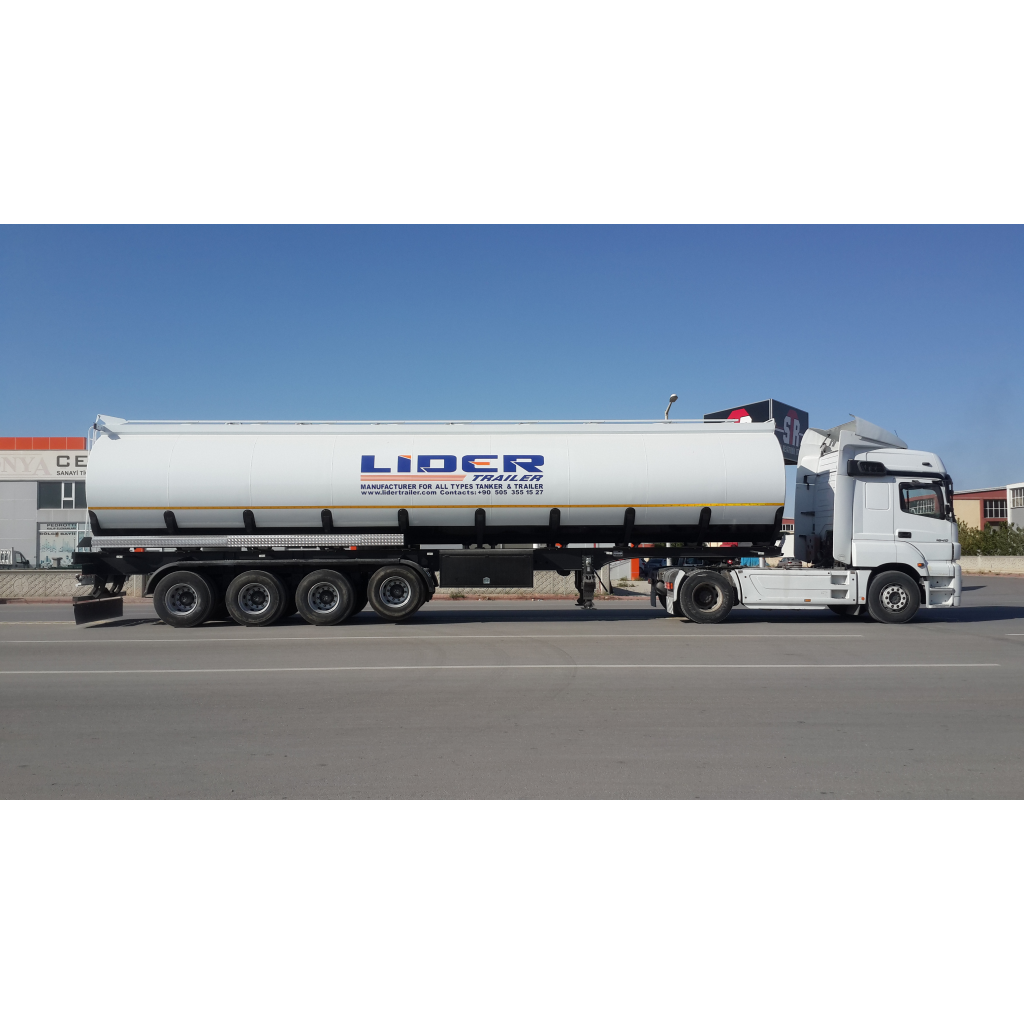

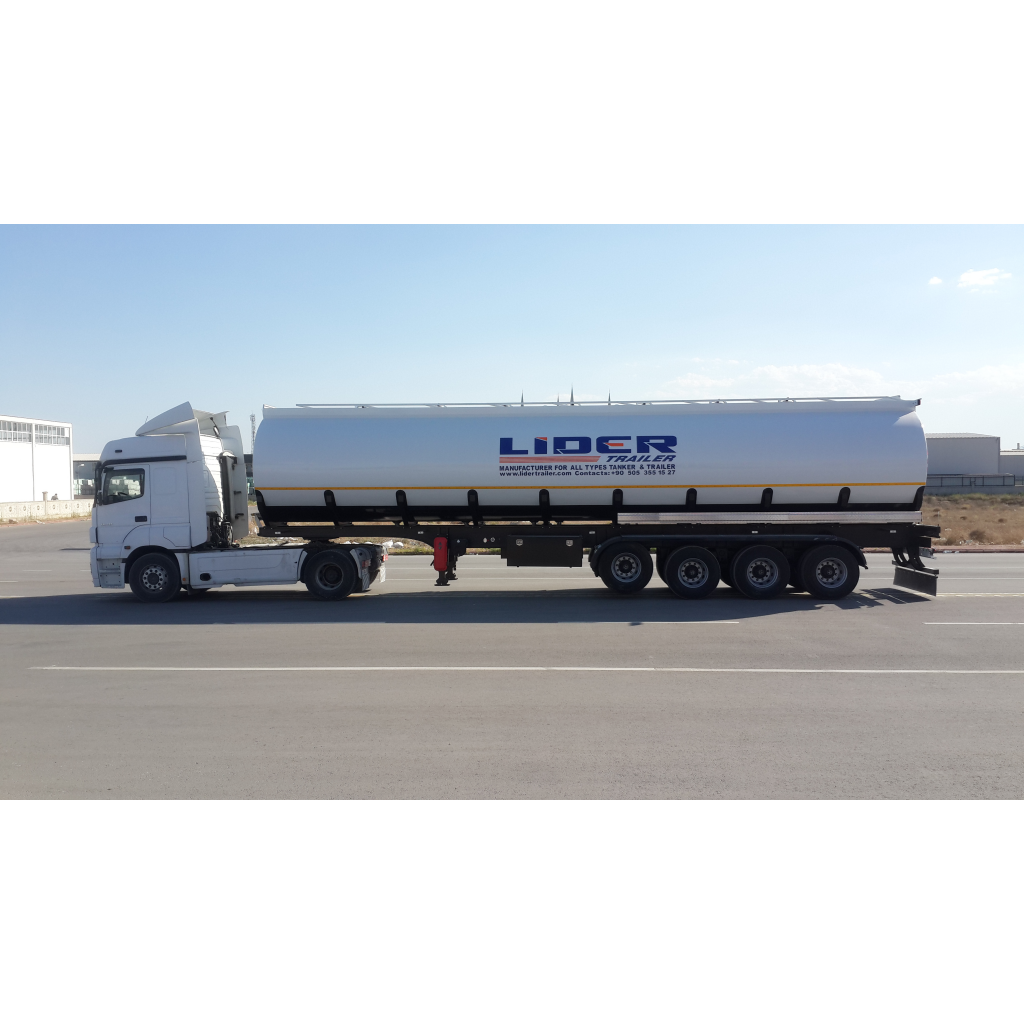

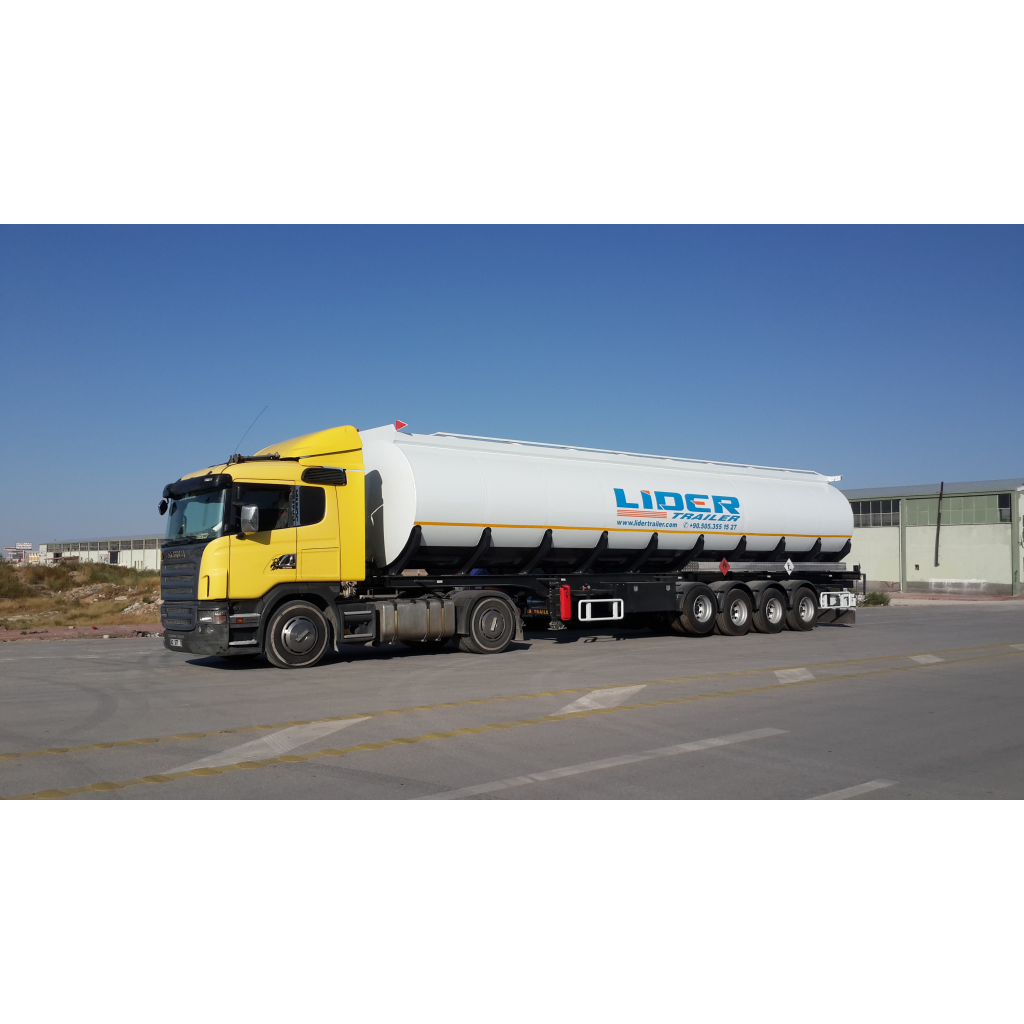

4 Axle Fuel Tanker Semi Trailer

  2. Fuel Tanker Semi Trailers

4 Axle Fuel Tanker Semi Trailer

TEKNİK BİLGİLER

Lider Trailers is offert a different models of fuel tanker semi trailers

among this models is 4 axlefuel tanker semi trailers .
This fuel tanker semi trailers have a 40000-55000 L capacity .
Please cilck here to get a offer for 4 axle fuel tanker semi trialesr.
You can see all technicalspecifications about 4 axle fuel tanker in attached .



  • Chassis :  Produced by gas welding machines from high resistance steelST52 meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine.
  • King Pin : Produced with wrought iron (42 cr Mo4)Thats high resistance to tension and breaking off compliance with 2’’ SAE/DIN norms and provides easy replacement posibility with screw connections.
  • Axles : 4 X 14000 kg carriying capacity. “Lider” brand.
  • Brake System : Designed according into the european standards are used on equipped with automatic brake adjustment brake chambers (30 cylinder), brake disk (394x210 mm) axle brakes system. There are two pieces of replecable protective brake sockets. Rear Axles 30x30 Service emergency bellows.
  • Counterfort : They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
  • Rear Bumper : 70/221/ AT version rear bumper.
  • Batten : 1 unit parking batten with moving equipment.
  • Wheel and Rim : 385/60 R22,5 tyres (6 Units) Goodyear or Pirelli Brand. 11,75 x 22,5 rim (6 Units)
  • Mudguard : 2 unit complete mudguard.
  • Spare Wheel : Single saddle type.
  • Cupboard : 1 unit cupboard.
  • Water Tank : 60 lt Cr –Ni water tank Produced by stanless stell.
  • Paint : Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in Paint Oven.
  • Electrical equipment : At side 5 unit Lamps 60, 70, 80 Label, at rear park lamps, 2 X 7 pim electric sockets.
  • Tank Volume : 40000 LT
  • Tank Equipment :
FILLING & DISCHARGING SYSTEM
- Leakproof, with gasket Manhole covers for each section
- Pipes in 3” diameter connect each section to valve box
- 3’’ diameter ball valve provides independent natural discharging system.
 -3 as filled from cover.

  • Accosseries :
  •
- Plastic mudguard covering rear axle group
- 1 piece discharge valve box made of sheet
 - 1 piece tool kit box made of sheet
- 1 piece nonskid ground walking platform
- 1 piece stair from rear existing
- 2 pieces PVC carrier for discharging hoses
- Plastic water tank - Roller or basket spare tire carrier
 - Aluminum bicycle guardrail
- Chock and chock place
