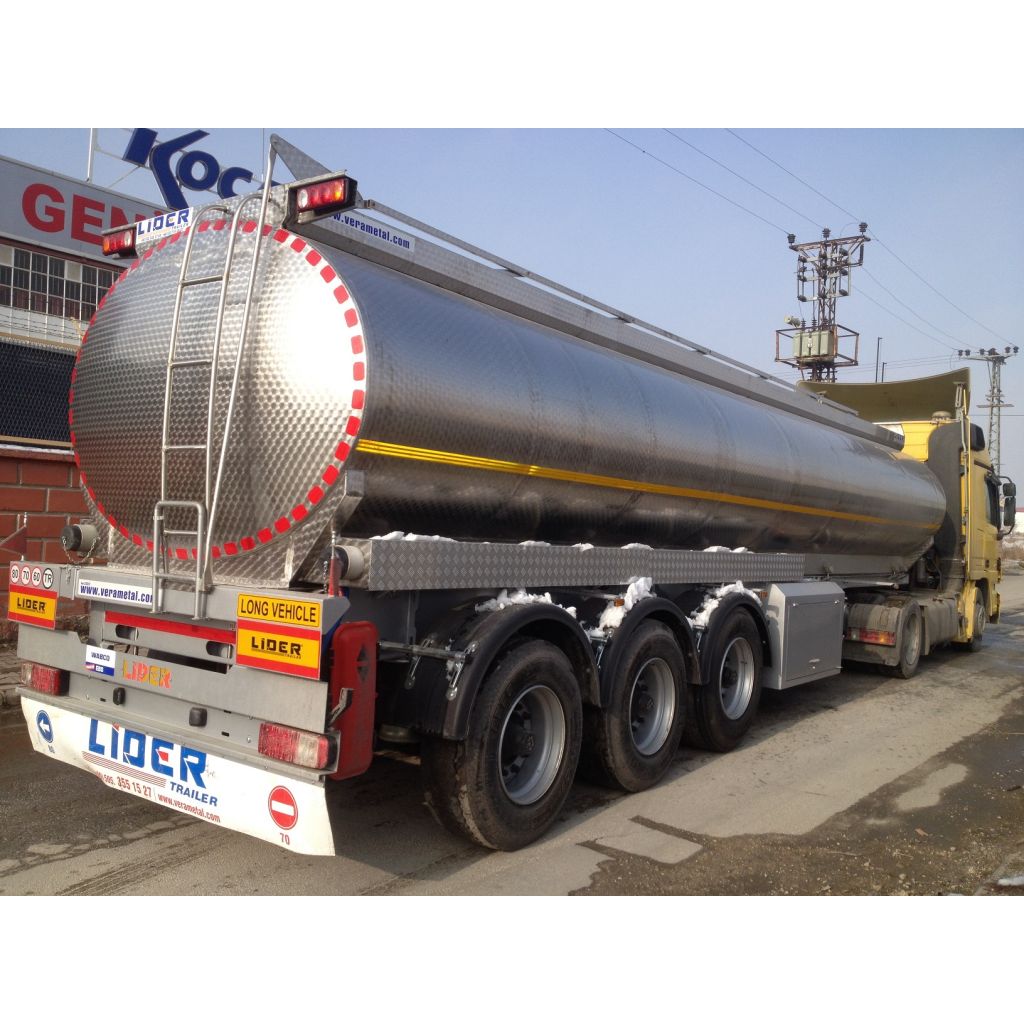

Water Tanker Semi Trailer
TEKNİK BİLGİLER
Water Tanker semi trailers for transportations a water .
This water tankers have be manufacturing from high quality chrome steel .
So this water tankers have by manufactured with chrome steel .
You can see all technical specifications about water tanker semi trailesr in attached .
45 LT Tanker Trailer Technical Properties
- chassis : Produced by gas welding machines from high resistance steel chrom meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine.
- King Pin : Produced with wrought iron (42 cr Mo4)Thats high resistance to tension and breaking off compliance with 2’’ SAE/DIN norms and provides easy replacement posibility with screw connections.
- Axles : 3 X 12000 kg carriying capacity. Turkish Mark automatic brake adjustment lever and compliance with european standards. Off drum brake systems.
- Brake System : Designed according into the european standards are used on equipped with automatic brake adjustment brake chambers (30 cylinder), brake disk (394x210 mm) axle brakes system. There are two pieces of replecable protective brake sockets. Rear Axles 30x30 Service emergency bellows.
- Air Suspension Systems : Air Suspension Systems are using with EU standarts.
- Counterfort : They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
- Rear Bumper : 70/221/ AT version rear bumper.
- Batten : 1 unit parking batten with moving equipment.
- Wheel and Rim : 385/60 R22,5 tyres (6 Units) Goodyear or Pirelli Brand. 11,75 x 22,5 rim (6 Units)
- Mudguard : 2 unit complete mudguard.
- Spare Wheel : Single saddle type.
- Cupboard : 1 unit cupboard. Water Tank : 60 lt Cr –Ni water tank Produced by stanless stell.
- Paint : Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in Paint Oven.
- Electrical equipment : At side 5 unit Lamps 60, 70, 80 Label, at rear park lamps, plate lamp triangle reflector. 2 X 7 pim electric sockets.
- Tank Capacity : 45000 LT
- Tank Meterial : Tank body is made of 4 mm thickness CRNİ 304 or CRNİ 316L
- Length 11 mm
- Width 2550 mm
- It has 3 sections
- Tank Equipment : FILLING & DISCHARGING SYSTEM
- Leakproof, with gasket Manhole covers for each section
- Pipes in 3” diameter connect each section to valve box
- 3’’ diameter ball valve provides independent natural discharging system.
-3 as filled from cover.
- Accosseries :
- Plastic mudguard covering rear axle group
- 1 piece discharge valve box made of sheet
- 1 piece tool kit box made of sheet
- 1 piece nonskid ground walking platform
- 1 piece stair from rear existing
- 2 pieces PVC carrier for discharging hoses
- Plastic water tank
- Roller or basket spare tire carrier
- Aluminum bicycle guardrail
- Chock and chock place
